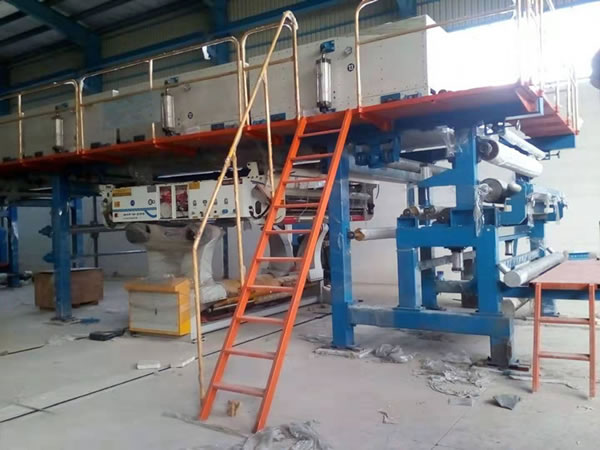

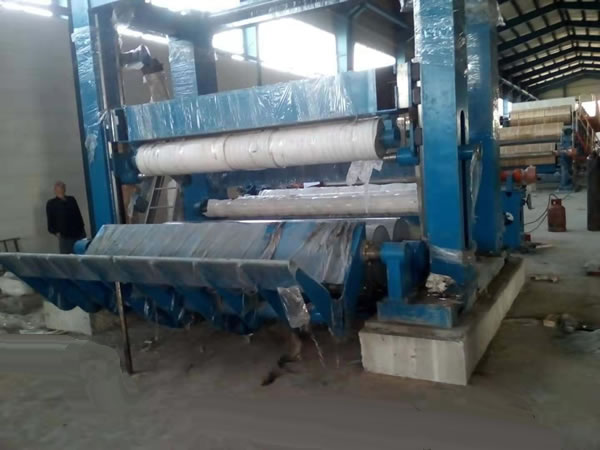

Overview of paper coater
1600/160 Case board paper coating machine is suitable for grey board paper, case board paper, kraft paper. Its GSM is 100～400g/m2.
The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.
Paper coater main parameters
1.Product variety：Grey board paper,case board paper, kraft paper.
2.GSM of base paper：100-400 g/m2
3.GSM of finished paper：150-450 g/m2
4.Base paper width：1650mm
5.Net paper width：1600mm
6.Design speed：180m/min
7.Working speed：100-160m/min
8.Nominal output：50 tons/day
9.Theoretical output: 57tons/day(200g/m2 *20h/d - 150m/min120 tons）
10.Coating type：Air knife + scraper knife or scraper knife + scraper knife coating（Single side twice coating）
11.Coating quantity：（max）one time 10--30g/m²*2times coating
12. Coating solid content：（max）35-62%
13.Steam heating：0.7Mpa
14.Working temperature of drying oven：140℃
15.Threading mode：Manually＋dry net automatic threading
16.Electric control mode：AC variable frequency sectional drive.
17.The temperature of drying oven can be adjusted manually.
The main configuration
|
No. |
Name |
Number |
|
|
1. |
Hydraulic unwinding stand(double arms) |
1 |
|
|
2. |
Air knife coater (back rollΦ270mm) |
1 |
|
|
3. |
Scraper knife coater (back rollΦ450mm) |
1 |
|
|
4. |
Scraper knife coater (back rollΦ450mm) |
1 |
|
|
5. |
Equipped with air knife 2.5m drying oven |
1 |
|
|
6. |
(1st-coating)2.5m Drying oven |
6 |
|
|
7. |
(2nd-coating)2.5m Drying oven |
5 |
|
|
8. |
Dry net threading device |
2 |
|
|
9. |
Φ900 Adjusting cylinder |
1 |
|
|
10、 |
Φ1000 Soft calender |
1 |
|
|
11. |
Φ800 Chrome plated cold cylinder |
2 |
|
|
12、 |
Φ900cylinder horizontal reel machine |
1 |
|
|
13. |
Frame ,walking board and railing |
1 |
|
|
14. |
Fastener |
1 |
|
|
15. |
Mechanical drive system |
1 |
|
|
16. |
Electrical system |
1 |
|
|
17. |
Base component |
1 |
|

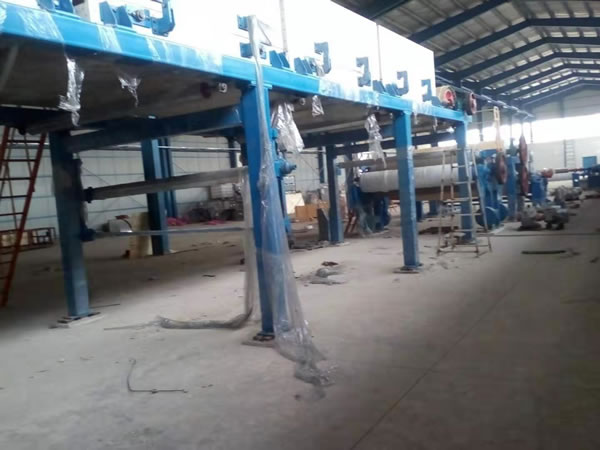

Overview of paper coater
2200/150 Case board paper coating machine is suitable for grey board paper, case board paper, kraft paper. Its GSM is 100～400g/m2.
The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.
Paper coater main parameters
1.Product variety：Grey board paper,case board paper, kraft paper.
2.GSM of base paper：100-400 g/m2
3.GSM of finished paper：150-450 g/m2
4 Base paper width： 2250mm
5.Net paper width： 2200mm
6.Design speed： 150m/min
7.Working speed： 60-150m/min
8.Nominal output：50 tons/day
9.Theoretical output: 50t/d（200g/㎡*20h/d *100m/min50 tons）
10. Coating type：Once air knife , once scraper knife
11.Coating quantity: （max）one time 10--30g/m²
12. Coating solid content： （max）35-62%
13.Steam heating： 0.7Mpa
14.Working temperature of drying oven：140℃
15.Threading mode：Manually＋dry net
16.Electric control mode：AC variable frequency sectional drive.
17. The temperature of drying oven can be adjusted manually.
The main configuration
|
No. |
Name |
Number |
|
|
1. |
Hydraulic pressure unwinding stand |
1 |
|
|
2. |
(Bottom coating)Air knife coater(back rollΦ270mm) |
1 |
|
|
3. |
Top scraper knife coater(back rollΦ450mm) |
1 |
|
|
4. |
(1st-coating)2.5mDrying oven |
4 |
|
|
5. |
(2nd-coating)2.5mDrying oven |
3 |
|
|
6. |
Dry net threading device |
2 |
|
|
7. |
Φ420Back coating device |
1 |
|
|
8. |
Φ900Adjusting cylinder |
1 |
|
|
9. |
Φ1000 Gloss calender |
1 |
|
|
10. |
Φ600Chrome plated cold cylinder |
2 |
|
|
11. |
Φ900cylinder horizontal reel machine |
1 |
|
|
12. |
Frame ,walking board and railing |
1 |
|
|
13. |
Mechanical drive system |
1 |
|
|
14. |
Electrical system |
1 |
|
|
15. |
Base component |
1 |
|
Overview of paper coater
2400/180 Cardboard paper coating machine is suitable for grey board paper, cardboard paper, kraft paper. Its GSM is 100～400g/m2.
The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.
Paper coater main parameters
1.Product variety：Grey board paper, cardboard paper, kraft paper
2.GSM of base paper：130-400 g/m2
3.GSM of finished paper：150-450 g/m2
4.Base paper width：2450mm
5.Net paper width：2400mm
6.Design speed：180m/min
7.Working speed：80-160m/min
8.Nominal output：70-90tons/day
9.Theoretical output: 92t/d（200g/㎡*20h/d *160m/min92tons）
10.Coated form：Twice , air knife and scraper knife
11.Coating quantity： （max）one time 10--30g/m²
12.Coating solid content：（max）35- 62%
13.Steam heating： 0.7Mpa
14.Working temperature of drying oven：140℃
15.Threading mode：manually +dry net threading
16.Electric control mode：AC variable frequency sectional drive.
17.The temperature of drying oven can be adjusted manually.
The main configuration
|
No. |
Name |
Number |
|
|
1 |
Hydraulic unwinding stand |
1 |
|
|
2 |
Sheet laying machine |
1 |
|
|
3 |
(1 coating) Air knife coater(back rollΦ270mm) |
1 |
|
|
4 |
(2coating)Scraper knife coater(back rollΦ450mm) |
1 |
|
|
5 |
(1 coating)2.5m Drying oven |
6 |
|
|
6 |
(2coating)2.5m Drying oven |
5 |
|
|
7 |
Back coating device |
1 |
|
|
8 |
Dry net threading device |
2 |
|
|
9 |
Φ900 Adjusting cylinder |
1 |
|
|
10 |
Φ1000 Soft calender |
1 |
|
|
11 |
Φ800Chrome plated cold cylinder |
2 |
|
|
12 |
Φ900cylinder horizontal reel machine |
1 |
|
|
13 |
Frame ,walking board and railing |
1 |
|
|
14 |
Fastener |
1 |
|
|
15 |
Mechanical drive system |
1 |
|
|
16 |
Electrical system |
1 |
|
|
17 |
Base component |
1 |
|
Overview of paper coater
2500/130 Cardboard paper coating machine is suitable for grey board paper, cardboard paper, kraft paper. Its GSM is 100～400g/m2.
The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.
Paper coater main parameters
1.Product variety：Grey board paper,cardboard paper, kraft paper. 2.GSM of base paper：100-400 g/m2
3.GSM of finished paper：150-450 g/m2
4.Base paper width：2550mm
5.Net paper width：2500mm
6.Design speed：150m/min
7.Working speed：60-130m/min
8.Nominal output：50 tons/day
9.Theoretical output :60t/d（200g/㎡*20h/d - 100m/min60 tons）
10. Coating type：Air knife + scraper knife or scraper knife + scraper knife coating（Single side twice coating）
11.Coating quantity:（max）one time 10--30g/m²*2times coating
12. Coating solid content： （max）35-62%
13.Steam heating：0.7Mpa
14.Working temperature of drying oven：140℃
15.Threading mode：Manually＋
