Application：

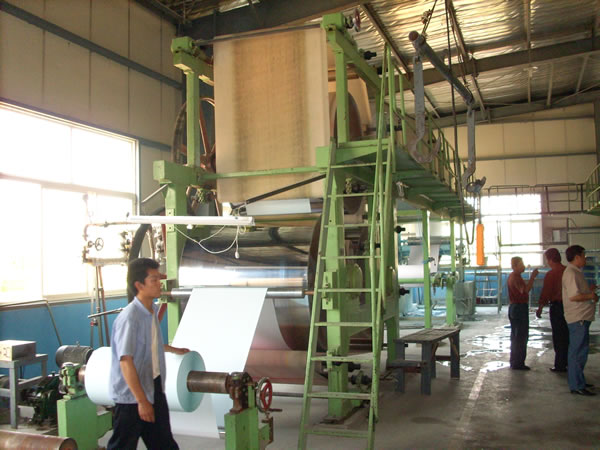

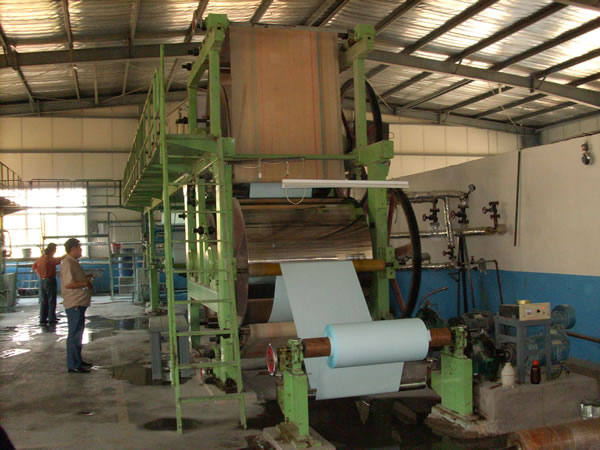

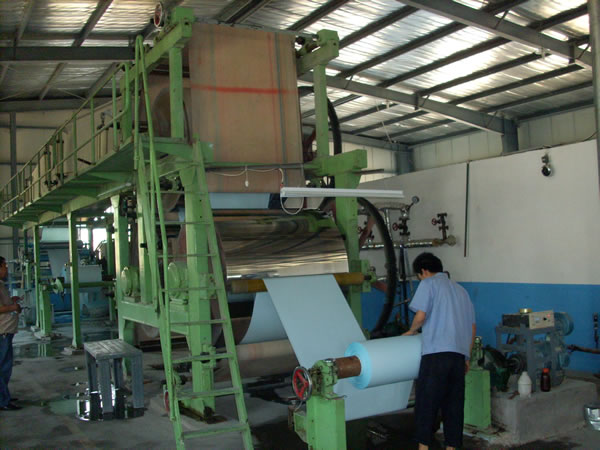

This machine is used for carbonless copy paper production equipment，at the same time can be coated on both sides of carbonless paper. With high production efficiency, low energy consumption, stable performance, base paper consumption is low, high yield, etc.

Main technical parameters：

Roller face width：1450mm

Maximum paper width：1250mm

Gsm：39~80g/m 2

Design speed：160m/min

Working speed：100~150m/min

Coating Method：Single roll feeding+Metering rod+Air knife coating

Number of coating heads：2 sets

Coating weight:1~10g/m2

Coating solid content：16~30%

Coating viscosity：10~80CPS

Thread gauge speed：10m/min

Drying method：Hot air circulation drying+Dryer cylinder finishing

Base paper moisture ：5~6%

Finished paper  moisture：5~6%

Heat source medium：Saturated steam

Steam pressure       >0.6Mpa

Dryer cylinder pressure ：<0.25Mpa

Transmission mode：Variable frequency speed regulation motor drive.

Structure description：

Technological process：Odd station shaft type unwind→Single roll feeding device→Air knife surface coating→Hot air circulation drying→Dryer cylinder drying finishing and calender finishing→Single roll feeding device→Air knife surface coating→Hot air circulation drying→Dryer cylinder drying finishing→Odd station reeling

Competitive Advantage:

Our company can provide the suitable coater for the customer with their different requirements. Besides, we can assure the customer of excellent quality, workable price and professional technical service.
