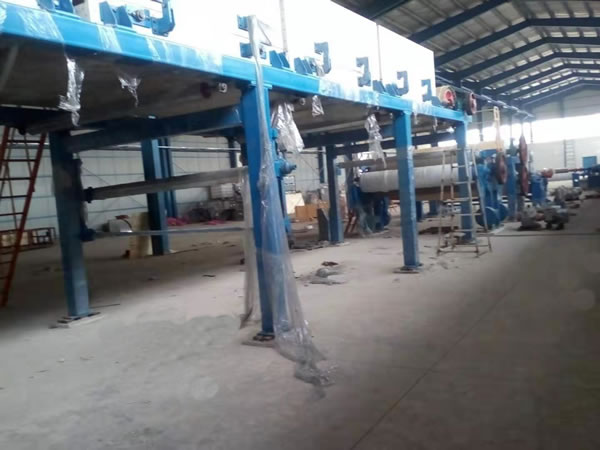

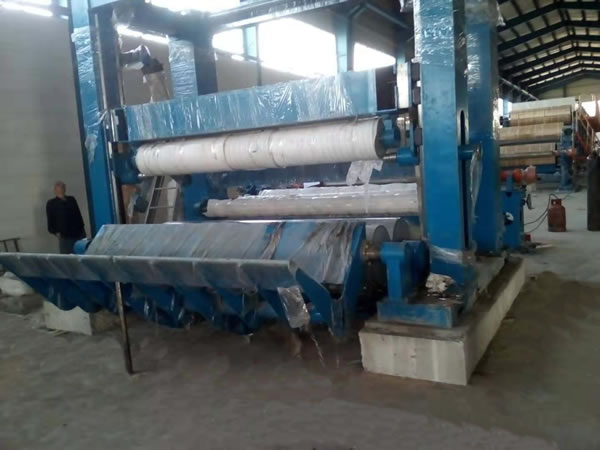

Overview of paper coater

Product description: 1800/150 Kraft paper coating machine is used for kraft paper, cardboard paper, brown mixed pulp board. Its GSM is 80～150g/m2.
INQUIRY

1800/150 Kraft paper coating machine is used for kraft paper, cardboard paper, brown mixed pulp board. Its GSM is 80～150g/m2.

The machine is layed in one-storied factory. It can be diviede into left-hand machine and right-hand machine according to different drive locations.

Paper coater main parameters

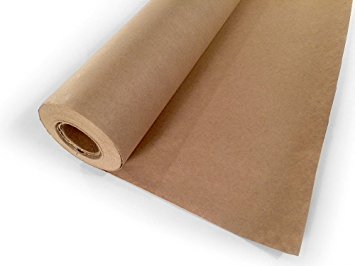

Paper： Kraft paper, cardboard paper, brown mixed pulp board

GSM of base paper： 80-150 g/m2

GSM of finished paper：130-200 g/m2

Width of base paper： 1850mm

Width of net paper： 1800mm

Design speed： 150m/min

Working speed： 80-140m/min

Nominal output： 40 tons/day

Theoretical output: 41t/d（130g/㎡ - 22.5h/d - 130m/min--41 tons）

Coated form： blade coating（blade twice）

Coating quantity：（max）10--30g/m²in one time

Coating solid content：（max） 62%

Steam heating： 0.7Mpa

Working temperature of drying：140℃

Threading mode：manually&net dry automatic threading

Electric control mode：AC variable frequency drive distribution

The main configuration

	NAME	NUMBER
1、	Paper planes hydraulic arms	1
2、	Pre-coated blade coater(backing rollΦ450mm)	1
3、	Topcoat blade coater(backing rollΦ450mm)	1
4.	Single-roll soft calender	1
5、	precoated oven 2.5m	4
6、	Topcoat oven 2.5m	3
7、	Dry net threading device	2
8	Φ900	1
9、	Φ1000Twin-roll soft calender	1
10、	Φ600Chrome cold cylinder	2
11、	Φ900 Cylinder horizontal reel	1
12、	Stand, walk the rail	1
13、	fastener	1
14、	machine drive system	1
15、	electric system	1
16、	Base component	1

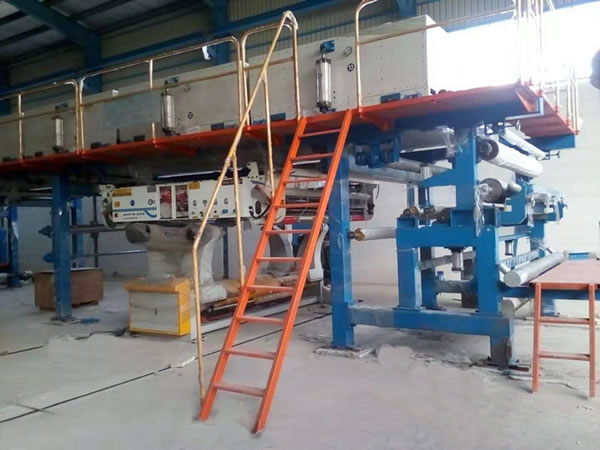

Overview of paper coater

2200/150 Kraft paper coating machine is suitable for grey board paper, box board paper, kraft paper. Its GSM is 100～400g/m2.

The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.

Paper coater main parameters

1.Product variety：Grey board paper, box board paper, kraft paper.

2.GSM of base paper： 100-400 g/m2

3.GSM of finished paper：150-450 g/m2

4 Base paper width： 2250mm

5.Net paper width： 2200mm

6.Design speed： 150m/min

7.Working speed： 60-150m/min

8.Nominal output： 50 tons/day

9.Theoretical output: 50t/d（200g/㎡ *20h/d *100m/min50 tons）

10. Coating type：Once air knife , once scraper knife

11.Coating quantity: （max）one time 10--30g/m²

12. Coating solid content：（max） 35-62%

13.Steam heating： 0.7Mpa

14.Working temperature of drying oven：140℃

15.Threading mode：Manually＋dry net

16.Electric control mode：AC variable frequency sectional drive.

17. The temperature of drying oven can be adjusted manually.

The main configuration

No.	Name	Number
1.	Hydraulic pressure unwinding stand	1
2.	(Bottom coating) Air knife coater (back rollΦ270mm)	1
3.	Top scraper knife coater(back rollΦ450mm)	1
4.	(1st-coating) 2.5mDrying oven	4
5.	(2nd-coating) 2.5mDrying oven	3
6.	Dry net threading device	2
7.	Φ420Back coating device	1
8.	Φ900Adjusting cylinder	1
9.	Φ1000 Gloss calender	1
10.	Φ600 Chrome plated cold cylinder	2
11.	Φ900cylinder horizontal reel machine	1
12.	Frame ,walking board and railing	1
13.	Mechanical drive system	1
14.	Electrical system	1
15.	Base component	1

Overview of paper coater

2200/220 Kraft paper coating machine is suitable for grey board paper, yellow cardboard , kraft paper,test liner board,kraft card board. Its GSM is 90～500g/m2.

The machine is layed in one-storied factory. It is a left hand machine.

Paper coater main parameters

1.Product variety：Grey board paper, box board paper, kraft paper.

2.GSM of base paper： 90-500 g/m2

3.GSM of finished paper：130-550 g/m2

4.Base paper width： 2250mm

5.Net paper width： 2200mm

6.Design speed： 220m/min

7.Working speed： 120-200m/min

8.Nominal output： 100tons/day

9.Theoretical output: 105t/d（200g/㎡ *20h/d *200m/min105tons）

10.Coating type：Once air knife,twice scraper knife（three times coating)
