Overview of paper coater

Product description: The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.
INQUIRY

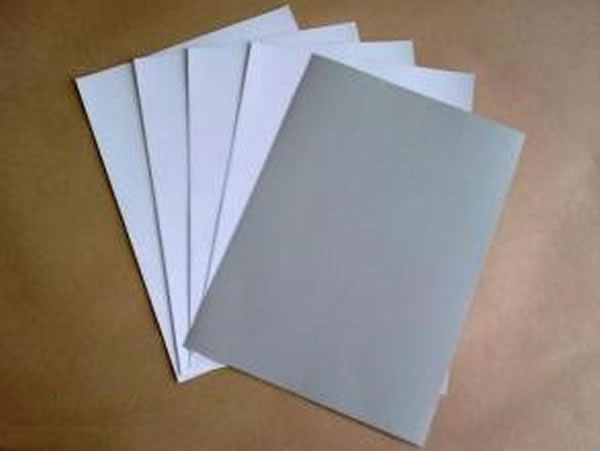

1600/200 Grey board coating machine is suitable for grey board, box board paper, kraft paper. Its GSM is 100～500g/m2.

The machine is layed in one-storied factory. It can be divided into left-hand machine and right-hand machine according to different drive locations.

Main parameters

1.Product variety： Grey board, box board paper, kraft paper.

2.GSM of base paper： 100-500 g/m2

3.GSM of finished paper：150-550 g/m2（According to the base paper 250 g/m2（Finish coating 300 g/m2 calculation）

4.Width of base paper： 1650mm

5.Width of net paper： 1600mm

6.Design speed： 220m/min

7.Working speed： 100-200m/min

8.Nominal output： 100 tons/day

9.Theoretical output: 116t/d（According to 300g/㎡ *22.5h/d - 180m/min116tons）

10.Coating type：： Air knife + scraper knife + scraper knife coating（Single side three times coating）

11.Coating quantity：（max）one time 10--30g/m²*3 times coating

12. Coating solid content：：（max） 35-62%

13.Steam heating： 0.7Mpa

14.Working temperature of drying oven：140℃

15.Threading mode：Manually＋dry net automatic threading

16.Electric control mode：AC variable frequency sectional drive.

17.The temperature of drying oven can be adjusted manually.

The main configuration

No.	Name	Number
1	Hydraulic unwinding stand(double arms)	1
2	Air knife coater (back rollΦ270mm)	1
3	Scraper knife coater (back roll Φ450mm)	1
4	Scraper knife coater (back roll Φ450mm)	1
5	Equipped with air knife 2.5m drying oven	1
6	(1st-coating) 2.5m drying oven	5
8	(2nd-coating) 2.5m drying oven	4
9	(3rd-coating)2.5m drying oven	4
10	Φ900 Adjusting cylinder	1
11	Φ1000 Soft calender	1
12	Φ800 Chrome plated cold cylinder	2
13	Φ900 cylinder horizontal reel machine	1
14	Frame ,walking board and railing	1
15	Mechanical drive system	1
16	Electrical system	1
17	Base component	1
